DATA LOGGER
&
DATA ACQUISITION SYSTEM
  Smart Label with Temperature Logger
  LOW COST, Small, Rugged, Self-sufficient Cold-Chain Monitoring Packing Label system.
Time and temperature monitoring labels are flat, about the size of a sugar packet (45mm x 57mm), and are able to digitally record time and
temperature of a product’s environment during the entire distribution cycle.
First, LEDs indicate if a shipment remained within acceptable temperature specifications. A flashing green LED indicates conditions were
always within acceptable parameters; yellow indicates conditions drifted outside of acceptable range and data should be downloaded from
the label for further Examination. Temperature range: Can be customise, Acc.: ± 0.5oC)
Logger Memory: 4kb readings (80 days of readings taken at 30 minute intervals)
Logging interval: Preprogrammed for 5 minute to 50 minutes.
Shelf Life: 6 months from date of purchase
  ExcelTemp Temperature & ExcelTH Temp/RH Logger
LOW COST, Small, Rugged, Self-sufficient Cold-Chain Monitoring system
Globally unique ID address
Temperature range: -30
0C to +85oC (Res.: 0.5oC, Acc.: ± 1.0oC)
R. Humidity range: 0 - 100%
(Others range also available upon request)
Logger Memory: 2048 readings (6 weeks of readings taken at 30 minute intervals)
Logging interval: Adjustable from 1 minute to 4 hours 15 minutes.
Battery Lifetime: > 10 years or up to 1 million Temperature measurements
  MicroLite USB Temperature logger:  EC
Temperature: -40º to 80º C (res. 0.2º C; accuracy. ±0.2º C)
2 buttons & 7 segments  3 digit LCD
View up to 30 days of min/max
USB Port
Sampling rate from every 10 sec to every two hours
Memory of 16,000 samples
Built in calendar and clock
IP 65
  MicroLog Datalogger:  EC600 (Temperature), EC650 (Temperature & Humidity)
Temperature: -30º to 50º C (res. 0.5º C; accuracy. ±0.6º C)
Humidity: 0 to 100% (res. 0,5% ; accuracy ±3% @ 25º C)
1 external sensor: light; contact; pH; voltage; current and more…
2 buttons & 7 segments  2 digit LCD
View up to 30 days of min/max
Serial Port (RS-232) , IrDA for printer and PC
Sampling rate from every 10 sec to every two hours
Memory of 16,000 samples
Built in calendar and clock
Dimensions: diameter - 72 mm; thickness 23 mm
Weight: 55 g
IP 65 for EC600 model and IP60 for model EC650
  MicroLog Datalogger (10 bit):  EC700 (Temperature), EC750 (Temperature & Humidity)
Temperature: -40º to 80º C (res. 0.2º C; accuracy. ±0.2º C)
Humidity: 0 to 100% (res. 0.1% ; accuracy ±3% @ 25º C)
1 external sensor: light; contact; pH; voltage; current and more…
2 buttons & 7 segments  3 digit LCD
View up to 30 days of min/max
Serial Port (RS-232) , IrDA for printer and PC
Sampling rate from every 10 sec to every two hours
Memory of 52,000 samples
Built in calendar and clock
Dimensions: diameter - 72 mm; thickness 23 mm
Weight: 55 g
IP 65 for EC700 model and IP60 for model EC750
  MicroLog External Sensors
  • Temperature (-50º to 100º C)   2.5m length and 8m length,   Needle probe option  -cable length 2.5m
  • Light (0 a 5000 Lux)
  • pH (0 - 14)
  • Contact
  • Current (4 - 20 mA)
  • Voltage (0 a 10 V)
  • PT100 (-10 to 10) or (-100 to 120)
  • Conductivity (0 to 20 mS)
  MicroLog Alarm Cradle
Alarm device
Communication: Serial and USB
Power: Battery or external
Connectors for external sensors and external antenna
OC to activate external device when alarm is crossed
Terminal board for: External power , external sensor, contact sensor , OC low and OC high alarm
  ExcelEnvironmetal Intelligent Monitoring Solution:
DataNet Wireless Data Acguisition System with Email & SMS Alarm
  • ZIgBee 2.4Ghz License-free Frequency RF Band
  • Range: 800m (repeater to Receiver), 80m datalogger to
    Repeater/Receiver.
  • Reliable mesh network of up to 65,000 units
  • Record 4-20mA, 0-1v, Pulse counter, Pt-100, 2-wires, NTC,
    Thermocouple J, K and T
  • Data displayed in numeric, or graphical display forms
  • On-line retrieval and display of the collected data in real-time
  • Map View display of all loggers’ location with the measured data
  • New sensors definition
  • Ability to read the defined sensor’s units on the logger’s display
  • Full calibration of the loggers via the software
  • Documentation and filing
  • Alarm levels on graphs
  • Export (CVS or Excel) and import to and from spreadsheets
  • Analytical functions, for professional analysis of the collected data
  • Manual backup of calibration setting
  • Over-the-air firmware update
  • Data save in DataNet Format & Text format option. Result: data can be
    integrated with any data base Data
  • User defined Alarm/Pre-Alarm Email & SMS Alerts option.
  • Power: B or rechargeable or external
  • Multiple alarm including SMS & email.

Applications:
  • Indoor Environmental Monitoring, record & alert
  • Indoor Air Quality Monitoring
  • Freezer Monitoring, record & Alert
  • Lab Monitoring, Server room monitoring, Utilities monitoring, etc
Receiver/Repeater
  DATAPASS (21FDAPart11) Software
For compliance
with the
United States
Food and Drug
Administration
Title
21 Code of
Federal
Regulations Part
11

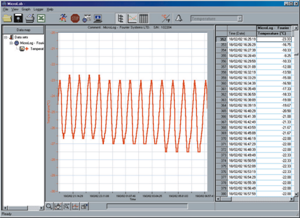

The dual program software package achieves compliance with FDA Title 21 CFR
Part 11 with: "MicroLab" or “MicroLab Plus” and “DatPass”. The DatPass
software is the administration software, which among other features defines the
users that can log onto the MicroLab or MicroLab Plus software, their passwords
and the digital signatures the users are permitted to sign data within electronic
records (files). The MicroLab or MicroLab Plus software is used to access the
electronic records, display the logger data, analyze the data and allow the user
add the appropriate digital signatures to the electronic records, among other
features. An additional security feature is the serial port dongle, without which
the MicroLab or MicroLab Plus and DatPass software packages will not operate.

Temp1000 Series Rugged, Submersible, Intrinsically Safe Temperature Recorder
Temperature Range: -40 ºC to +125 ºC
Available model with Intrinsically Safe
up to 0.1 ºC resolution, 0.5 ºC accuracy
Stainless steel or aluminum enclosure
32,767 reading storage

ThermoVault - Oven Profiling Temperature Recorder

0.1 ºC resolution, 0.5 ºC accuracy
Will operate up to 400 ºC for 10 minutes
16,383 reading storage

Pasteurization Monitor Logger
PRU-2000 and TDL series data loggers to monitor the pasteurization process in
beverage and food industries.
Lifetime battery more than 8 years
Single and dual temperature channels, temperature and pressure models available.
Detachable temperature probe to fit every model of bottle or can.
Include
Winpasture Software, for print Reports w ith graphs or tables.
calculate Units (PU, FO), T max, time, etc.

Temperature & Humidity Logger
The DL-1 and DL-2 are a new, low cost, temperature and relative humidity data loggers for use wherever these parameters need to be
monitored.
Museums, hospitals, pharmacy, laboratories, schools, transport, agriculture, and many others.
The DL-1 a 14Bit device that measures Temperature, one internal and one optional external channel.
The DL-2 a 12 Bit device measures Relative Humidity & Temperature with self contained sensors.
Size is 65x65x28mm ABS plastic Temperature range -40 to + 85 degrees C, RH range 0 to 100%RH

SOXXX & ROXXX Series Temperature Logger
Available Model:
1 x IntTemp
(With/Without Display)
1 x ExtTemp
2 x ExtTemp
2 x Int&ExtTemp
4 x ExtTemp
2 x ExtTemp + 2 x Binary

  • Temperature Range: -30 to +80°C, -40 to +80°C logger R0110
  • Accuracy: Pt-1000 external probe ±0.2°C from -50 do +100°C; Internal Sensor: ±0.4°C
  • Resolution: 0.1°C
  • large data memory 32000 values
  • large dual line display with special symbols, switchable
  • optional display of minimum and maximum measured values (reset of min/max memory from PC or by magnet)
  • dual level alarm is enabled for each channel, alarm is indicated by blinking of the value on the LCD display or LED diode
  • two alarm modes are enabled: instant or with memory (detected alarm is indicated permanently till alarm memory is
    cleared from the PC)
  • robust case, easy installation, locking enabled
  • low power consumption from battery, up to 7 years lifetime, easy replacement of the battery
  • indication of remaining battery life
  • standard temperature sensor is Pt1000, switchable to Ni1000/6180ppm external probes at range -50 to +150°C
  • it is possible to combine temperature measurement with logging of contact state (e.g. door contact)
  • logging start/stop is enabled in several ways: at certain time and date programmed from computer, by delivered magnet
    or depending on binary input state
  • also special logging mode is enabled, when logging runs only, if some of measured values are out of adjusted alarm
    limits
  • each logger is possible to describe with text of maximum 32 characters
  • each channel is possible to describe with text of maximum 16 characters
  • password protection is enabled to prevent unauthorized manipulation with logger

S3XXX & R3XXX Series Temperature & Humidity Logger
Available Model:
1 x IntTemp/RH
(With/Without Display)
1 x ExtTemp/RH
(with/Without Display)
1 x IntTemp/RH + 1 x
ExtTemp
1 x IntTemp/RH + 2
x0..5V
  • Temperature Range: -30 to +80°C, -40 to +80°C logger R0110
  • Accuracy: Pt-1000 external probe ±0.2°C from -50 do +100°C; Internal Sensor: ±0.4°C
  • Accuracy of Humidity measurement: 2.5% RH from 5-95%RH at 23°C
  • Accuracy of dew point: 0.5°C from 30-95%RH
  • Resolution: 0.1°C / 0.1%RH
  • large data memory 32000 values
  • large dual line display with special symbols, switchable
  • optional display of minimum and maximum measured values (reset of min/max memory from PC or by magnet)
  • dual level alarm is enabled for each channel, alarm is indicated by blinking of the value on the LCD display or LED diode
  • two alarm modes are enabled: instant or with memory (detected alarm is indicated permanently till alarm memory is cleared from
    the PC)
  • robust case, easy installation, locking enabled
  • low power consumption from battery, up to 7 years lifetime, easy replacement of the battery
  • indication of remaining battery life
  • standard temperature sensor is Pt1000, switchable to Ni1000/6180ppm external probes at range -50 to +150°C
  • it is possible to combine temperature and RH measurement with measurement of two user calibrated voltage signals 0-5V from
    any transducer
  • logging start/stop is enabled in several ways: at certain time and date programmed from computer, by delivered magnet or
    depending on binary input state
  • also special logging mode is enabled, when logging runs only, if some of measured values are out of adjusted alarm limits
  • each logger is possible to describe with text of maximum 32 characters
  • each channel is possible to describe with text of maximum 16 characters
  • password protection is enabled to prevent unauthorized manipulation with logger

ThermaData dual Channel Temperature Recorder

This digital temperature datalogger has two external sensors.
The two LED indicators show logging and alarm status.
Storage capacity 2,000 readings per channel. 2 year battery life.
-40 to +125°C / ± 0.5°C

Graphtec Multi-Channel Measurement Logger
Various enhanced features realize multi-channel measurement anytime, anywhere

Expandable from the standard 20-channel configuration to a maximum of 200 channels
All channels feature insulated and multi-function inputs
The GL800 is a compact data logger, with an A5 footprint, providing excellent portability.
All channels are isolated channel-to-channel and channel-to-ground. It has the ability to
perform simultaneous measurement of voltage , temperature and humidity. It also supports
such inputs as pulse (e.g. power, rpm and flow) and logic, in addition to voltage and t
temperature.

Record directly to USB memory
The new LOGGER is compatible with high-capacity USB memory devices and also features
12 MB of internal flash memory.

Graphtec Lineacorders and Servo Corders


The Linearcorder Mark VII is capable of recording high-speed phenomena of up to 140 Hz, and can therefore be used
for a wide range of applications - from production sites to the laboratory. The WR3320 can be configured as a 1-, 2-, 3-,
4- or 6-channel recorder with an amplitude of 80 mm. per channel or as a 2-, 4-,6-, 8-, or 12-channel recorder with an
amplitude of 40 mm. per channel.











Continuous Recording Up to 200 Meters
Both roll and Z-fold paper can be used with the WR3320. 100 meter lengths stock inside the recorder, while an optional
Z-fold chart supply box with a take-up tray enables the use of 200 meter lengths. Roll paper can be rewound simply by
pressing the REWIND switch, and an automatic roll chart take-up unit is available as an option.

Multiple Remote Control Functions
Remote control functions such as pen heat on/off, chart feed start/stop, synchronization with an external pulse, output of
paper-end signal, input of event marker signals, and input/output of time marker signals enable automated, unmanned
operation.

1 V d.c. Reference Voltage Output
Rear panel reference voltage output connectors enable easy calibration whenever plug-in units have been exchanged.
The reference voltage output used for calibration is 1 V d.c.

Options
These include a roll chart take-up unit, alphanumeric printing along the chart edge, rack-mount brackets, and 1/2, 1/10,
1/20 of the standard chart speeds.

Graphtec Hard Disk Logger


High-Speed and Simultaneous Sampling Inputs
Stable measurement thanks to multi-channel, high-speed, and simultaneous sampling. Realizes data acquisition without
time delays between channels.

Insulated Multifunction Inputs for All Channels
llows combined use of voltage, voltage/temperature, strain and frequency amplifiers based on the measurement target.
Insulated inputs ensure worry-free measurements.

Easy PC Connection through LAN and USB
Standard configuration provides a USB interface for easy PC linking, LAN interface for remote acquisition, and a PCMCIA
card slot (Type II).

Bundled PC software
Bundled PC application software allows viewing of waveforms in real-time through USB and LAN interfaces.
e use of 200 meter lengths. Roll paper can be rewound simply by pressing the REWIND switch, and an automatic roll
chart take-up unit is available as an option.

Thermal Array Corders













Advanced Features...But Easy On Your Wallet
The WR300 Series Thermal Array corders are economical waveform recorders available in 4, 8 and 16 channel
configurations. Unlike old-fashioned paper-only recorders, the WR300 series are 21st century technology through and
through. In fact, this unit is nothing less than a single-box version of the ultra-modern DM3100V2 with the screen and
printer built in!







And it offers convenient 2-channel plug-in modules that adapt the WR300 to a wide variety of input types and sensors,
including voltages up to 500 V, strain gages, thermocouples, frequency/RPM signals, and more. There's also a logic input
amp which offers the same number of inputs as the base machine (4, 8, or 16).




DATA LOGGER
&
DATA ACQUISITION SYSTEM
web counter
